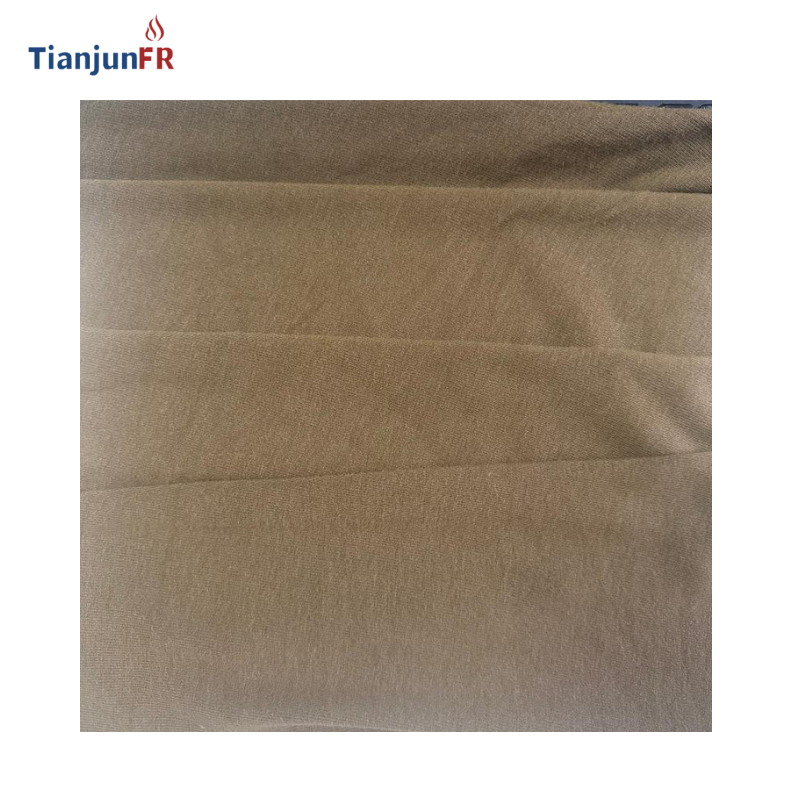

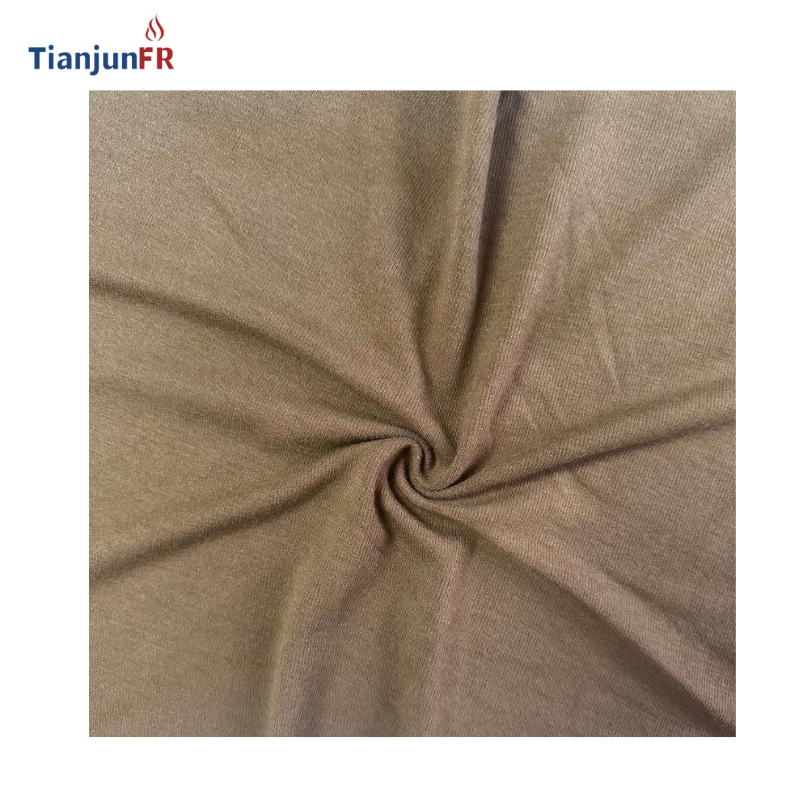

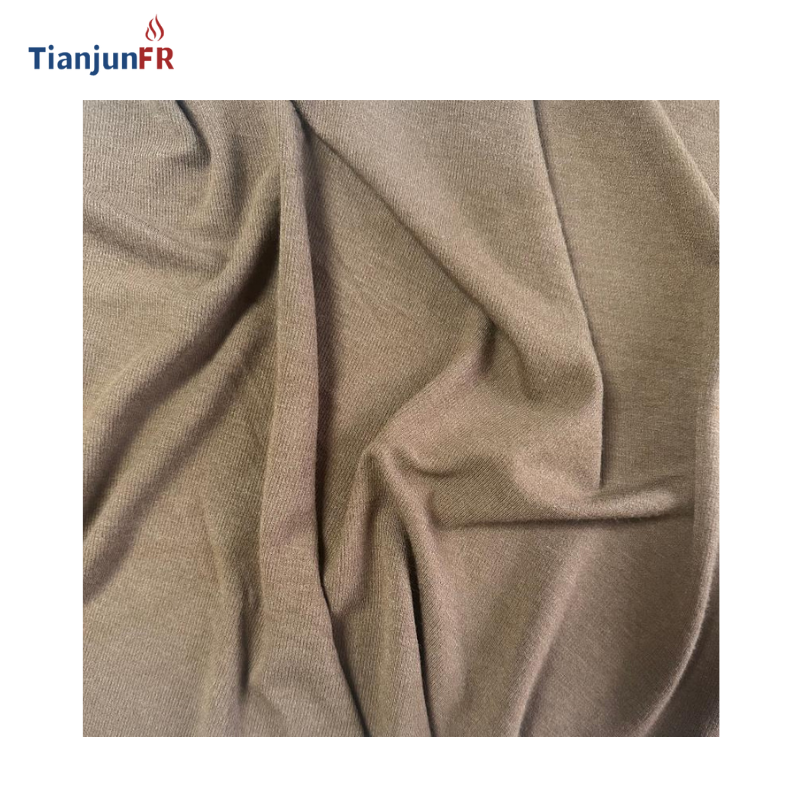

Modacrylic FR Viscose Polyamide and Spandex Anti-Static Stretch Fabric for Workwear in Flame retardant function

Product Name: Modacrylic / FR Viscose / Polyamide / Spandex Anti-Static Stretch Fabric for Flame Retardant Workwear

1. Executive Summary

This document presents a comprehensive overview of a state-of-the-art protective textile engineered for the most demanding industrial work environments. The Modacrylic / FR Viscose / Polyamide / Spandex Anti-Static Stretch Fabric represents a significant advancement in personal protective equipment (PPE) technology. By synergizing four distinct fiber technologies with integrated anti-static properties, this fabric delivers a complete safety solution that addresses flame resistance, electrostatic discharge (ESD) protection, mechanical durability, and ergonomic comfort within a single textile platform.

Designed specifically for workwear applications requiring certified flame retardant function, this multi-fiber blend ensures that workers remain protected, comfortable, and mobile throughout extended shifts in hazardous conditions.

2. Fiber Composition & Technical Roles

The exceptional performance characteristics of this fabric derive from the precise engineering and balanced interaction of its four primary fiber components, each selected for its specific contribution to the overall protective and functional profile.

2.1 Modacrylic (The Thermal Stabilizer)

Fiber Type: Synthetic copolymer with inherent flame-resistant properties.

Technical Function: Modacrylic possesses a high Limiting Oxygen Index (LOI), typically above 28-32%, meaning it requires a higher concentration of oxygen to sustain combustion than is present in ambient air. This makes the fiber naturally self-extinguishing.

Protective Mechanism: When exposed to flame or intense heat, Modacrylic chars and shrinks away from the ignition source, forming a protective barrier. It does not melt or drip, preventing severe contact burns.

Additional Benefits: Offers excellent resistance to industrial chemicals, solvents, and ultraviolet (UV) degradation, ensuring long-term performance in harsh environments.

2.2 FR Viscose (The Comfort & Char-Forming Base)

Fiber Type: Regenerated cellulosic fiber with integrated flame-retardant technology (typically silica-based).

Technical Function: FR Viscose combines the comfort properties of natural fibers with permanent flame resistance built into the fiber matrix during manufacturing.

Protective Mechanism: Upon exposure to flame or radiant heat, FR Viscose rapidly forms a thick, insulating char layer. This carbonaceous char acts as a thermal barrier, reducing heat transfer to the skin and cutting off the oxygen supply to the flame, effectively extinguishing the fire.

Comfort Contribution: Provides superior breathability, moisture absorption, and a soft, cotton-like hand feel, making it ideal for next-to-skin applications.

2.3 Polyamide / Nylon (The Durability Reinforcement)

Fiber Type: Synthetic polyamide polymer (commonly Nylon 6.6 or Nylon 6).

Technical Function: Polyamide is incorporated specifically to enhance the mechanical performance and longevity of the fabric.

Protective Contribution: While not inherently flame-retardant, when blended with FR fibers in controlled proportions, Polyamide significantly improves:

Abrasion Resistance: Protects against wear and tear from rough surfaces, tools, and equipment.

Tensile Strength: Enhances tear and burst strength, preventing garment failure under stress.

Dimensional Stability: Helps the fabric maintain its shape and structure through repeated use and industrial laundering.

Note: The percentage of Polyamide is carefully balanced to ensure it does not compromise the overall flame-retardant performance of the blend.

2.4 Spandex / Elastane (The Mobility Enhancer)

Fiber Type: Synthetic elastomeric fiber (polyurethane-polyurea copolymer).

Technical Function: Spandex provides exceptional mechanical stretch and recovery properties to the fabric.

Ergonomic Benefits:

Freedom of Movement: Allows the fabric to stretch with the wearer's body during bending, reaching, and crouching.

Fatigue Reduction: Reduces physical restriction and garment resistance during strenuous activity.

Shape Retention: Ensures the garment returns to its original dimensions after stretching, preventing bagging or sagging.

Improved Fit: Allows for closer-fitting protective garments without restricting mobility, enhancing both safety and comfort.

2.5 Anti-Static Conductive Elements (The ESD Protection)

Integration Method: Conductive fibers (typically carbon-suffused nylon or polyester, or fine stainless steel filaments) are incorporated into the fabric structure, often in a grid, stripe, or interwoven pattern.

Technical Function: These conductive elements create a controlled pathway for static electricity to dissipate safely and continuously to ground.

Safety Mechanism: By preventing the accumulation of static charge on the garment surface, the fabric eliminates the risk of sudden electrostatic discharges (sparks) that could ignite flammable gases, vapors, or dust particles in hazardous classified areas.

Permanence: The anti-static property is durable and remains effective throughout the garment's life, provided the conductive fibers are not damaged.

3. Key Performance Properties

The synergistic combination of these five fiber technologies results in a fabric with the following critical performance characteristics:

3.1 Inherent Flame Retardancy

Permanence: Flame resistance is built into the molecular structure of the Modacrylic and FR Viscose fibers. It will never wash out, fade, or diminish over time, unlike topical (treated) finishes.

No Melt / No Drip: The fabric will not melt or drip onto the skin when exposed to high heat, preventing catastrophic burn injuries.

Char Formation: Creates a protective insulating barrier that shields the skin from thermal energy.

3.2 Electrostatic Discharge (ESD) Protection

Continuous Dissipation: Provides a reliable path for static electricity to discharge safely, meeting international standards such as EN 1149 or ASTM F1959/F1506.

Spark Prevention: Essential for workers in Zone-classified hazardous areas (oil & gas, chemical processing, grain handling, mining) where a single spark could cause an explosion.

3.3 Mechanical Durability

Abrasion Resistance: Polyamide reinforcement significantly extends garment life in abrasive environments.

Tear Strength: Enhanced resistance to rips and snags, maintaining garment integrity.

Launderability: Engineered to withstand repeated industrial washing cycles without significant loss of protective properties, dimensional stability, or appearance.

3.4 Ergonomic Stretch & Comfort

Four-Way Stretch: Spandex allows the fabric to stretch in all directions, providing unparalleled freedom of movement.

Recovery: Excellent shape retention ensures garments maintain their fit and performance over time.

Breathability: FR Viscose facilitates moisture vapor transmission, helping to regulate body temperature and keep the wearer dry in hot or active conditions.

3.5 Chemical Resistance

The Modacrylic and Polyamide components provide inherent resistance to a wide range of industrial chemicals, acids, and alkalis, adding an extra layer of protection in chemical processing environments.

4. Applications & End-Use Segments

This versatile fabric is suitable for a wide range of protective garments across multiple industries:

	Industry Sector	Specific Applications
Oil & Gas	Coveralls, base layers, shirts, pants	Flash fires, hydrocarbon fires, ESD, chemical exposure
Electrical Utilities	Arc flash protective clothing, lineman uniforms	Electric arc flash, thermal heat, ESD
Chemical Processing	Industrial uniforms, protective coveralls	Flame, chemical splashes, static discharge
Metal Processing	Foundry wear, welding protection	Molten metal splatter, radiant heat, sparks
Mining	Base layers, workwear uniforms	Flame, abrasion, static in explosive atmospheres
Welding	Welding jackets, aprons, base layers	Sparks, spatter, UV/IR radiation
Military & Law Enforcement	FR combat uniforms, tactical gear	Flash fires, heat, mobility requirements

The Modacrylic / FR Viscose / Polyamide / Spandex Anti-Static Stretch Fabric represents a comprehensive solution for modern flame retardant workwear. By integrating certified flame resistance, permanent anti-static control, industrial-grade durability, and ergonomic stretch into a single textile platform, this fabric addresses the full spectrum of worker needs in hazardous environments.

It ensures that safety professionals no longer have to choose between protection and comfort – they can have both, enabling them to perform their duties effectively while staying safe throughout their workday.
